Techna 3001 plus

DOUBLE MITRE SAW WITH BLADES AT 90° AND 45° - AUTOMATIC BORING FOR DOWELS - MILLING OF COUNTERPLATES, ZIPPER, CONCEALED HINGES, PIVOT HINGES - PRE-BORING, INSERTING, SCREWING OF ANUBA HINGES

Automatic production unity for the processing of doors frames with coupling joint at 45°. CNC machine at 6 controlled axis.

Motor for laying and drilling ANUBA: Kw 1,5.
Brushless Motor for screwing ANUBA Nm 2,40
Max. width of the door frames: 210 mm.
Max height of the cut:
- mm 80 (with blades at 45°).
- mm 120 (with blades at 90°)
Min. length of the cut:
- mm 880 (with blades at 45°).
- mm 680 (with blades at 45° with alternative cut).
- mm 650 (with blades at 90°).
Max. length of the cut: 3100 mm – motor 2,4 Nm
Milling unit (rotation 0° – 90°) with electro mandrel motor at Kw 3,3.
X axis work stroke 2500 mm – Brushless Motor power 4,8 Nm.
Y axis work stroke 200 mm – Brushless Motor power 2,4 Nm.
Z axis work stroke 100 mm – Brushless Motor power 2,4 Nm.
CNC equipped with additional Ethernet port for remote assistance.
Machine executed according to CE rules, included the perimetric protection.

The quote request is free and includes
purchase consultation.

How the machine works:

Heavy structure in stabilised tubolar steel in order to guarantee absolute robustness.
Mobile right head cutting unit with Brushless motorized positioning and controlled by CNC (axis C).
The sliding movement is made on tempered guides and ball recirculation racks.
Movement by Brushless motors and precision encoders on rectified ball screws.
X axis sliding through rack-pinion system in order to have absolute measure precision.
Each unit is driven by a motor of Kw 3, self-braking.
Blade descent regulated by oleo-pneumatic cylinder
NR.4 support tables pieces supplied with pneumatic vertical clamps.
NR.1 Intermediate support table.
NR.2 Horizontal pneumatic clamps placed on cutting units.

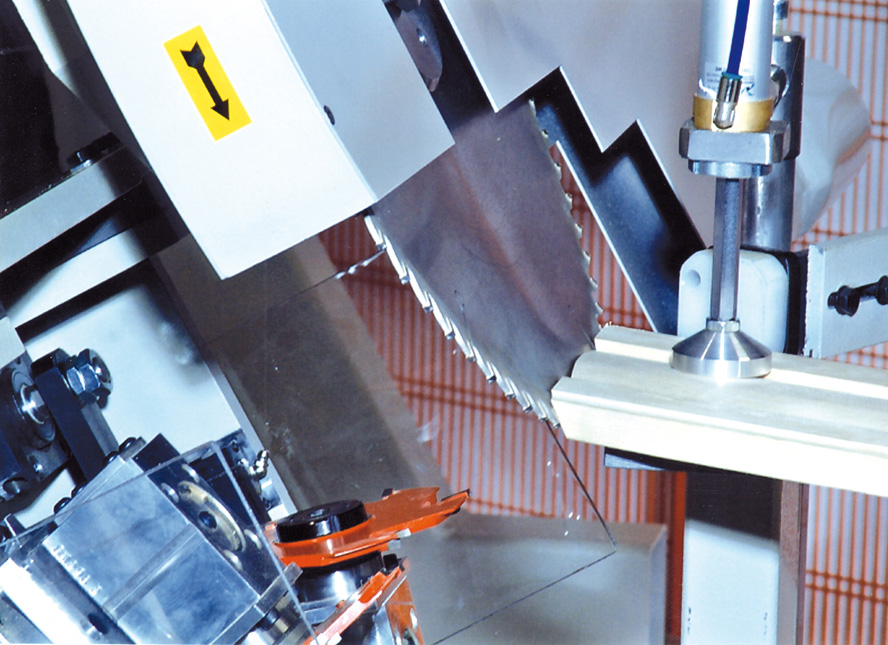

Automatic and pneumatic inclination of the blades (0-45° internal).
Independent motors of Kw. 1,5 (r.p.m. 5500).
Sliding movement on rolling slide units.
Mechanical reader for vertical and horizontal adjustments.
NR.1 Milling group with 3 controlled and interpolated axis (x1-z1-y1) and equipped with elecro-mandrel motor with manual change of the tool.
NR.1 Anuba group with controlled inclination from -5° +90° and controlled screwing (axis u1-v1) .
CNC with touch screen video 15” (Management Software with an easy graphic interface and default macros for standard hardware processing on door frames and panels).
Zero stop and frontal supports to work on door panel.
Probe to automatically detect frames thickness.
Pressor safety controlled by CNC.

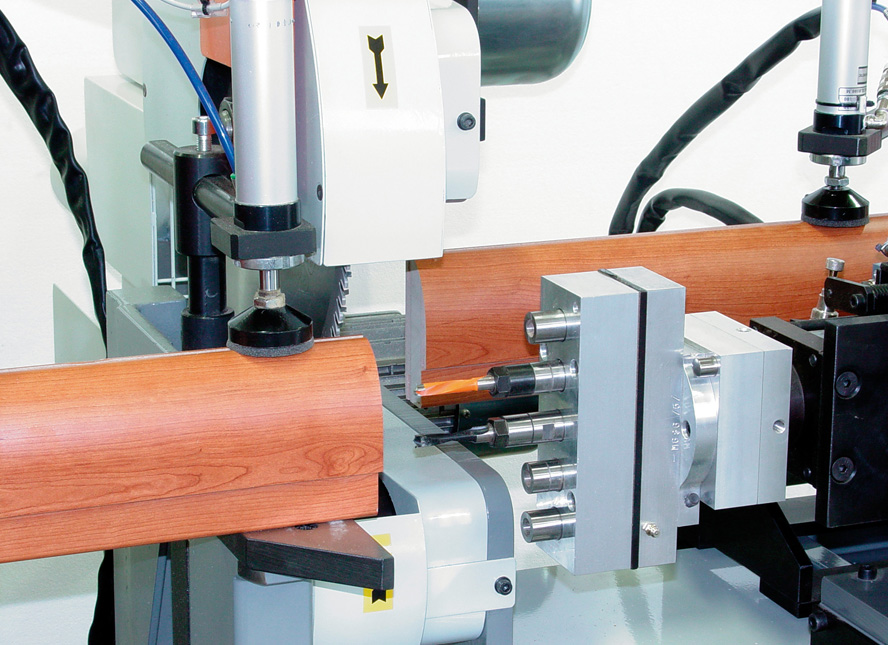

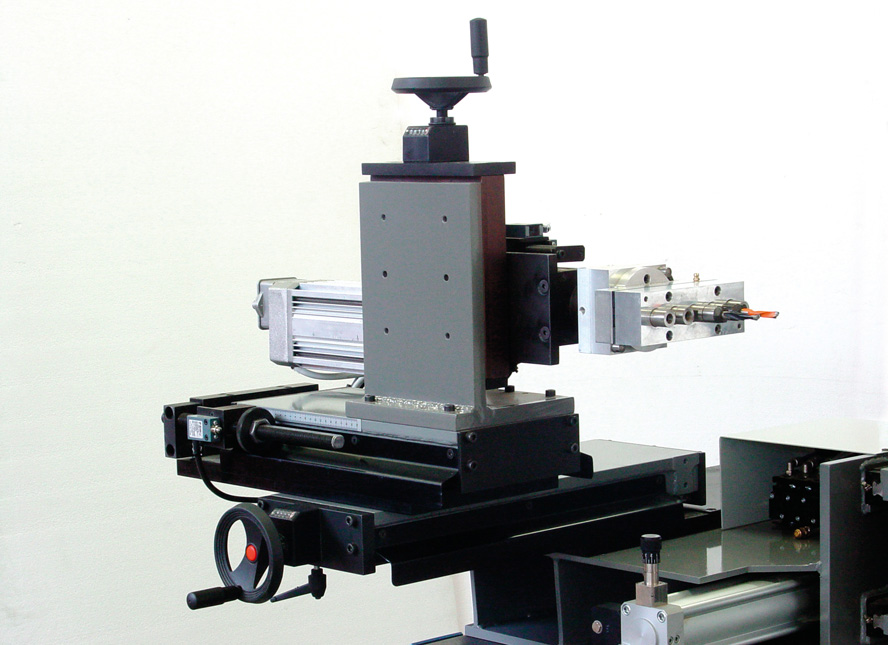

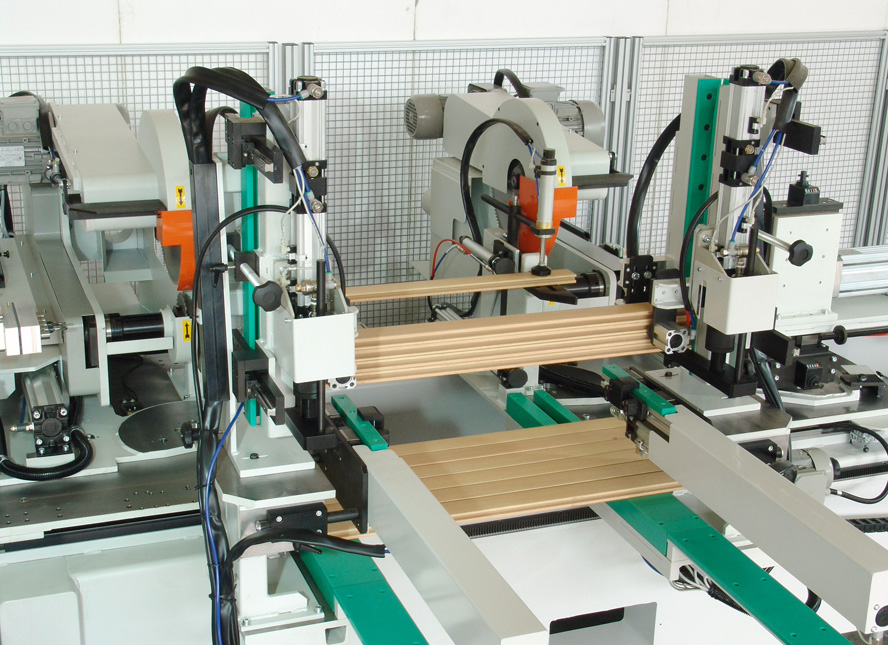

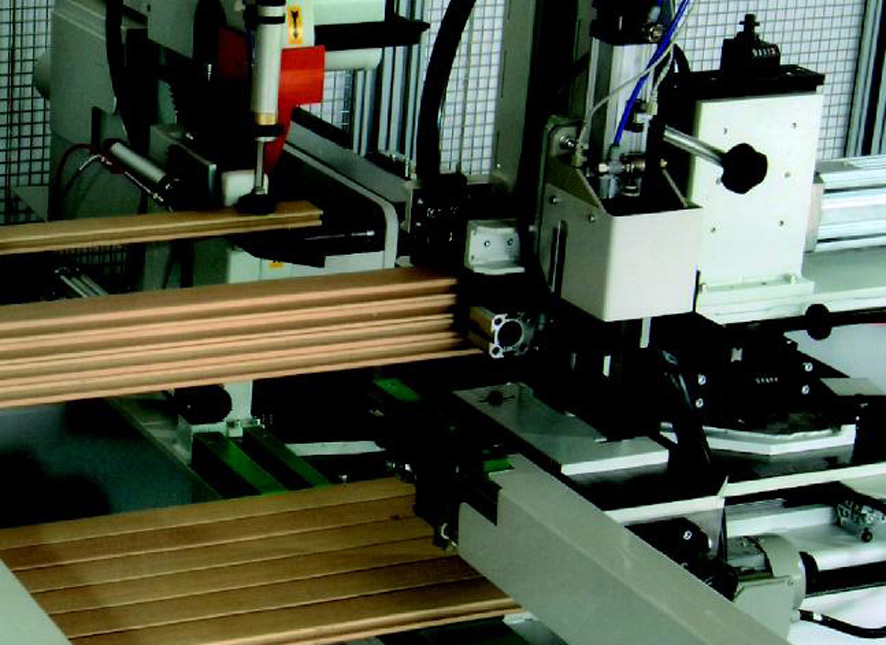

Pneumatic boring units rotation (45° – 0°).
Kit for double-leg anuba hinges

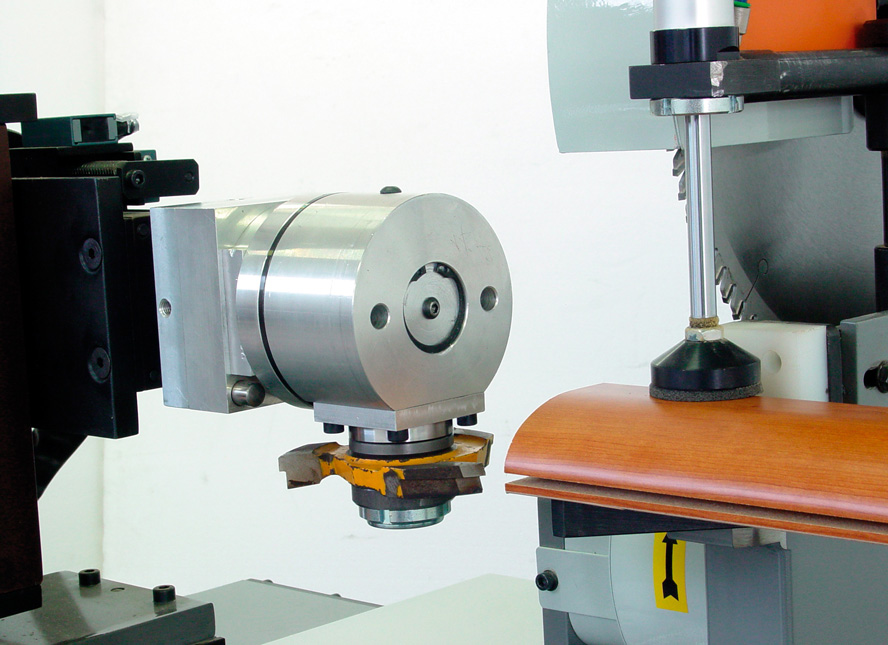

Additional milling electro-mandrel motor of 2Kw with

ER25 collet
Electrical spindle with rapid change with pneumatic system of the tools.
Roller pressors group with joint movement with the milling units (support tables will be eliminated)
